MX-10 Hott 5-channel 2.4Ghz stick transmitter set by Graupner

33110 - The mx-10 HoTT with its 5 control functions can give experienced RC model builders control over virtually any model. The use of Graupner HoTT 2.4 GHz transmission technology safeguards high functional reliability through bidirectional communication between transmitter and receiver with telemetry display via the optional Smart Box and ultra-fast response times.

• Programming with switches
• Dual rate switch 70 % / 100 %
• Wireless teacher/pupil mode
• Wireless simulator operation via the SUM signal of the receiver
• Mixer for rudder or delta-wing or V-tailplane in the transmitter
• Additional mixers possible via the receiver
• Servo reverse function
• Mode 1-4 programmable
• 3-pole serial connection for USB adapter #7168.6 for firmware upgrades and for display of telemetry data with the Smart-Box #33700
• Microcomputer remote control system with state-of-the-art 2.4 GHz Graupner HoTT technology
• Bidirectional communication between transmitter and receiver
• Wireless L/S function
• Servo cycle times of 10ms can be selected for digital servos (with Smart-Box)
• Ultrafast response times through direct transmission of the data from the main processor to the 2.4-GHz transceiver with reliable transmission. No additional delays through detours via a module processor
• Short aerial, foldable
• 5 control functions
• Modes 1 to 4 are freely selectable
• Programmable failsafe function »Stop« or »Advance to preset positions«
• Charger socket for chargeable transmitter battery
• Integrated V-mixer, delta-mixer, or rudder mixer selectable, makes it possible, for example through skilful combination of control functions to accomplish finely dosed and realistic turning manoeuvres, such as for track vehicles, duo-boat drives, and V-tailplanes on aircraft models
• Servo-reverse switch for simple adaptation of turning direction for all control channels

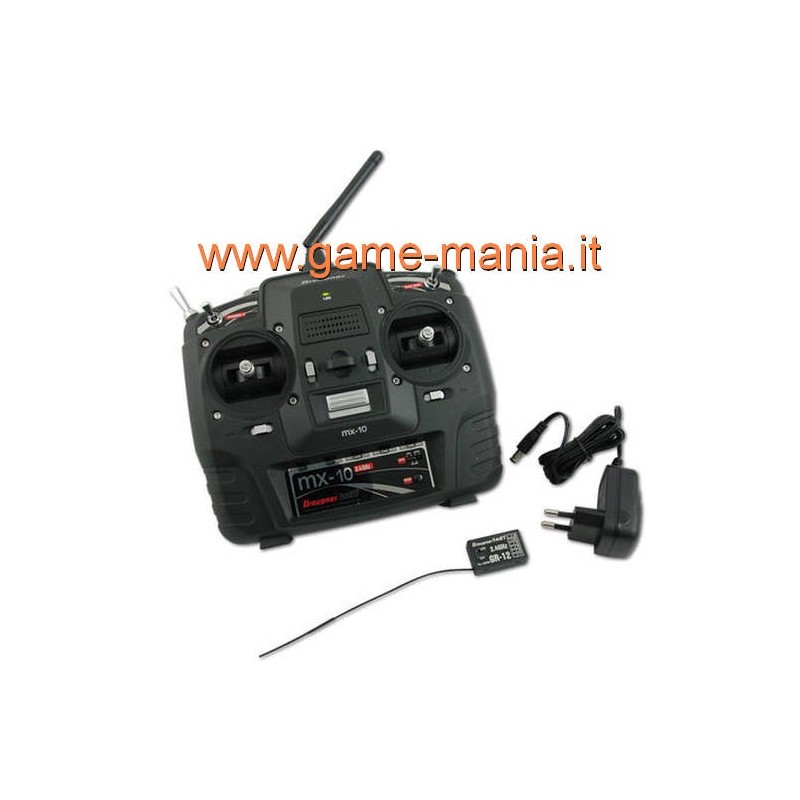

The Set contains:

Microcomputer telemetry transmitter Graupner HoTT mx-10 with built-in rechargeable 1500 mAh NiMH transmitter battery, Graupner HoTT GR-12 receiver, 200 mA transmitter charger

General HoTT characteristics:

• Simple and extremely fast binding
• Range test and warning function
• Undervoltage warning
• Extremely wide receiver operating voltage range of 3.6 V to 8.4 V (functional up to 2.5 V)
• Fail-safe, free channel assignment (channel mapping), mixer functions and all servo settings are easy to program with the HoTT Smart Box
• Up to 4 servos can be controlled simultaneously as a block in a servo cycle time of 10 ms (digital servos only)
• Maximum noise immunity due to optimised frequency hopping and wider channel spread
• Intelligent data transfer including error correction
• Extremely fast rebinding, even at maximum distance
• Real-time telemetry evaluation
• More than 200 systems can be used simultaneously
• Update capability via USB interface guarantees future viability

Safety:

FHSS, frequency hopping over up to 75 channels

Maximum interference immunity through optimised frequency hopping, wider channel spread and antenna diversification

Intelligent data transfer including error correction

Extremely wide range

Range test and warning function

Undervoltage warning

Extremely wide receiver operating voltage range of 3.6 V to 8.4 V (functional up to 2.5 V)

Numerous fail-safe functions

Key-log function to prevent unintentional changes to menus


Precision:

Shorter response times can be set (10 ms period time)

No additional delays due to module processors All hopping management is handled directly by the 32 bit main processor.

Synchronous servo operation made possible by simultaneous control of servo outputs in blocks of 4


Pilot feeling:

Essentially delay-free control responses due to direct processing

Real-time telemetry evaluation

Optional voice output for timers, telemetry data and warnings via headset connector

Repeat function and continue function for voice output can be programmed via freely assignable switches

Pre-selection of voice output to be used

Separately adjustable volume for beeps and voice output

Integrated telemetry display with 8 x 21 characters or 128 x 64 pixels, optionally in text or graphics form

Duration of display lighting: ALWAYS, 30 s, 60 s, 90 s, 120 s

Micro SD card slot for storage of telemetry data similar to a black box and for expansion of model memories

PC software for analysis or display of downloaded telemetry data

Buzzer signal programmable for peak T/P function receiver output, satellite receiver, simulators, flybarless stabilization systems, etc.

Model-memory-dependent binding, except for copied model memories

Wireless teacher/pupil function

3 flight phases programmable

Swashplate limiter

Motor off function

Numerous fixed-wing and helicopter mixers


Other features:

Simple and extremely fast binding

Free channel assignment (channel mapping), transmitter and receiver mixer functions and all servo settings are simple to program

Binding of any number of receivers for channel expansion (16 channels maximum) The last receiver bound sends the telemetry data.

Update capability via PC interface guarantees future viability

NEW:

• Extremely wide range
• SUM signal programmable at the output of the highest channel for T/P, simulators, V-stabilisers, etc.
• Servo outputs can be controlled simultaneously in blocks of 4
• Sensitivity and speed of the vario sensors can be adjusted
• Faster response times (10 ms period time, adjustable)
• No additional delays due to module processors All hopping management is handled directly by the main processor.
• USB connection option
• Wireless teacher/pupil function
