5V-12V input SETTABLE voltage 14Amp CC BEC v2.0 by Castle Creations
€59.99
Tax included

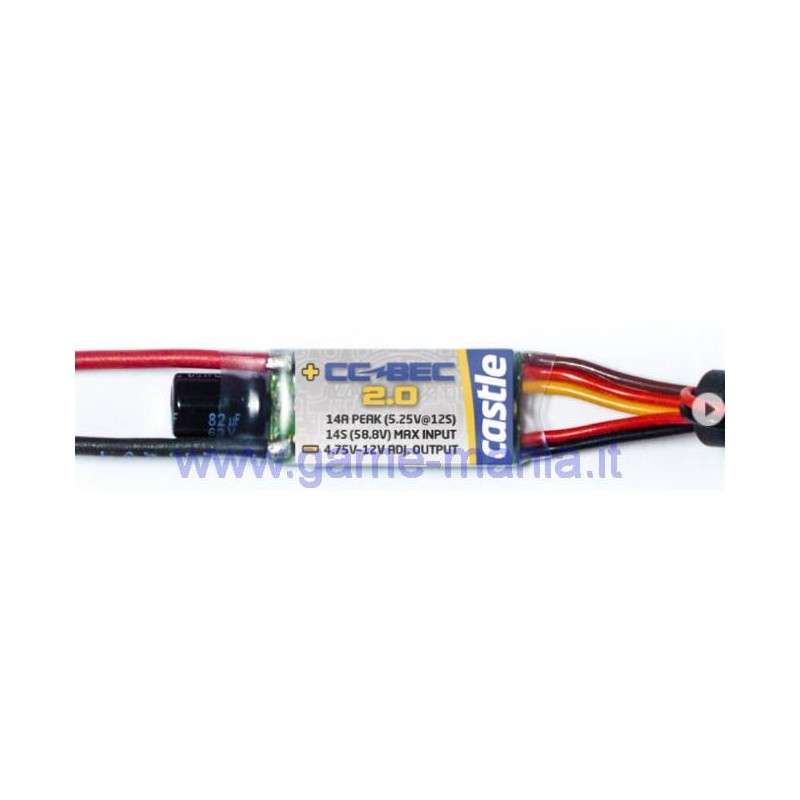

CSE010010800 - This CC BEC v2.0 is a powerful, small and advanced 14A peak BEC! A BEC eliminates the need for a receiver and servo battery pack, it draws higher voltage from the motor batteries and send the power to your receiver and servos.
# Output current: 14 Amps max
# Output Voltage: programmable between 4,8 and 12 Volts in 0.10V increments
# Input voltage: 5V to 50V or 2S-12S Lipo
# Fit any major brand receiver and ESC
# Weight: 21g
# Size: 43x14x08mm
# Works with any R/C vehicle (also nitro and gas powered)
| CC BEC Comparison Chart | ||||
|---|---|---|---|---|
| CC BEC 1.0 | CC BEC Pro | CC BEC 2.0 | CC BEC 2.0 WP | |
| Part Number: | 010-0004-00 | 010-0004-01 | 010-0154-00 | 010-0153-00 |
| Common applications: | Crawlers, Racing, Sport Planes, Night Flyers | Helis, 1/5th Scale Cars, Giant Scale Planes, UAS | Helis, Planes, UAS, Racing | Crawlers, Marine, Sea Planes, UAS, Industrial |
| Waterproof: | No | No | No | Yes |
| Peak current: | 10A | 20A | 14A (dependent upon input and output voltage) | 15A (dependent upon input and output voltage) |
| Continuous current1: |
2S-3S: 7A 3S-6S: 5A |
2S-4S: 15A 5S-6S: 13A 7S-8S: 11A 9S-10S: 9A 11S-12S: 8A |
4.75-7.0V output: 9A 7.25V-8.5V output: 8A 8.75V-10.0V output: 7A 10.25-12.0V output: 6A |
4.75- 6.0V output: 10A 6.25-8.5V output: 9A 8.75-10.0V output: 8A 10.25-12.0V output: 7A |
| Max volts: | 6S (25.2V) |
Surface: 8S (33.6V) Air (w/Brake): 10S (42.0V) Air (No Brake): 12S (50.4V) |
Surface: 12S (50.4V) Air (W/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
Surface 12S (50.4V) Air (w/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
| Adjustable output voltage2: | 4.8 to 9V | 4.8 to 12.5V | 4.75 to 12V | 4.75 to 12V |
| Default setting: | 5.1V | 5.1V | 5.25V | 5.25V |
| Length: | 1.7" (43mm) | 1.86" (47mm) | 1.69" (43mm) | 1.37" (35mm) |
| Width: | 0.57" (15mm) | 1.30" (33mm) | 0.56" (14mm) | 0.69" (18mm) |
| Height: | 0.48" (12mm) | 0.86" (22mm) | 0.32" (8mm) | 0.75" (19mm) |
| Weight3: | 0.53 oz. (15.2g) | 1.4 oz. (40g) | 0.7 oz. (21g) | 1.0 oz. (28g) |
