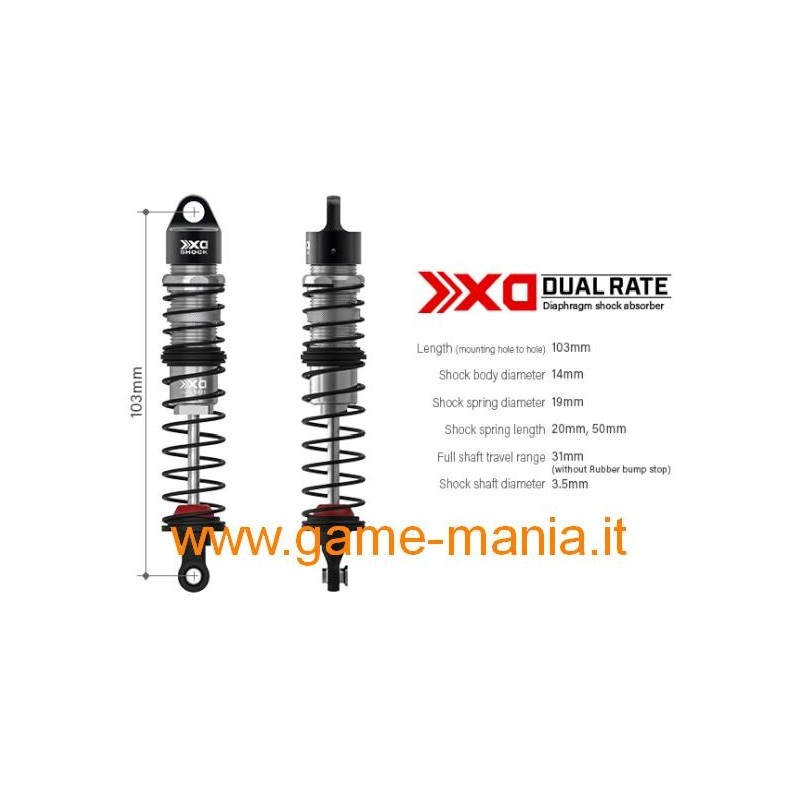

103mm grey alloy XD DIAPHRAGM DUAL RATE shock pair by Gmade

• CNC machined aluminum shock bodies, spring adjust nuts, stop rings, caps and cartridges

• Silver anodized shock bodies, spring adjust nuts, stop rings and cartridges

• Upper and lower shock ends includes silver anodized aluminum balls

• Black anodized shock caps

• Fully threaded for rapid adjustment

• Delrin pistons

• 3.5mm thick shock shafts

• Shaft exits through double O-ring seals

• True dual stage spring rate

• Easy load shock seal assembly

• Laser engraved for authenticity

• Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1 and GOM, Axial wraith and bomber, Traxxas E-maxx and 2WD Slash rear)

Silver anodized aluminum shock bodies x 2

Silver anodized aluminum spring adjust nuts x 2

Silver anodized aluminum stop rings x 2

Silver anodized aluminum cartridges x 2

Black anodized aluminum shock caps x 2

Shock springs x 4

All necessary hardware to finish the shocks

Assembly instructions

Bottle of shock oil

• Length (Mounting hole to hole): 103mm

• Shock Body Diameter: 14mm

• Spring Diameter: 19mm

• Spring Length: 20mm and 50mm

• Full Shaft Travel Range: 31mm (without Rubber bump stop)

• Shaft Diameter: 3.5mm
